Tank Washing NozzlesWhen considering importing spray nozzles from China, our company stands as your ideal partner. As a dedicated spray nozzle manufacturer, we are committed to providing excellent service and products to meet the import needs of our international customer.

360°automatic rotating high-pressure cleaning fan nozzle

360°automatic rotating high-pressure cleaning fan nozzle

Name: Tank rotary cleaning nozzle
Material: 316 stainless steel, hardened stainless steel
Fluid: single-fluid
Spray angle: 360° full coverage cleaning
Working pressure: 1-4bar
Flow rate: 23 to 205L/min
Maximum temperature: 200°F(93°C)
Working principle: Fluid-driven reaction force
Inlet connection: G3/4(NPT, BSPT)
Scope of application: small drum cleaning, Pipe cleaning, reactor, fermenter, tanks and other types of container wall cleaning

Get A Quick Quote

OVERVIEW

Rotary cleaning nozzle using a unique design external multiple small nozzles, nozzles to different directions to form a 360 ° rotation, the nozzle all-round coverage of the object to be cleaned every corner of the rotary cleaning nozzle will form a high-speed rotating water flow, this rotating water flow has a strong impact, can effectively get rid of dirt and impurities. At the same time, the rotary movement also makes the cleaning more uniform, avoiding the traditional cleaning method may appear local cleaning is not complete problem, without manual adjustment, greatly improving the cleaning efficiency.

Tank rotary cleaning nozzle Advantage:

1) The use of tank washing nozzles can realise the automation of the cleaning process, significantly shorten the operating time and reduce operating costs.

2）Totally eliminate the risk of high-pressure splashing and chemical corrosion, providing efficient and safe cleaning solutions for hazardous chemical tanks.

3）The rotating nozzle carries the patented triangular spray structure, adopting liquid flow drive technology and precise positioning hole design, realising 360° through the principle of dynamic rotary spray

4）The whole area is covered without blind area, ensuring that every corner of the tank interior is efficiently flushed.

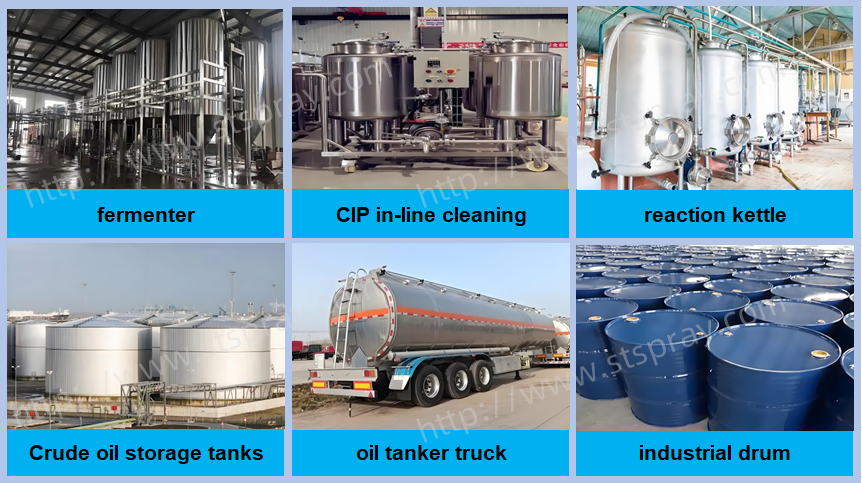

Scope of application：

The cleaning system is widely used in:

1. Bio-engineering field (bio-fermentation tanks, pharmaceutical reaction kettles) 2. Food processing industry (beverage storage tanks, soy sauce/edible oil production line)
3. Chemical manufacturing field (petrochemical reaction kettles, lithium electrolyte containers) 4. Sugar industry equipment (molasses storage tanks, crystallisation reaction kettles)
5. Warehousing and transport equipment (cabin cargo tanks, tonne drums and containers)

can be achieved. Mixing tanks, fermentation tanks and other types of tanks 360 ° clean without dead angle
．Efficient stripping of adherents on the inner wall of the reactor
．Automated cleaning of tank interlayers and piping systems
．GMP standard cleaning of food-grade containers

Comparison picture of the effect before and after cleaning:
