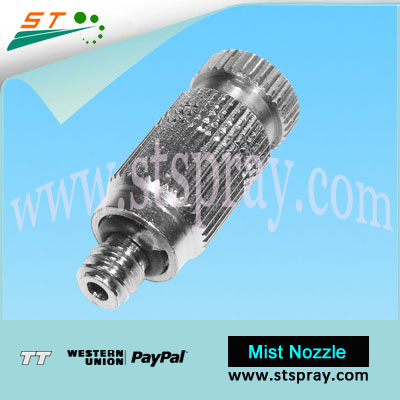

Are you thinking hard to found a kind of nozzls to humidfy in textile mill , electronic industry and othe factories ? WH series high pressure mist nozzles will help you solve this.

Our WH Series High Pressure Mist Nozzles have different model No. for your making various choices. Following are the detailed model No. for your reference:

Item No.:  WHA	Item No.:  WHB	Item No.: WHC
Item No.:  WHD	Item No.:  WHE	Item No.:  WHF( Nozzle Filter)

Above nozzles are the SAME, just the Material and Appearance are NOT SAME.
Pls choose the ones you like.

Similarities:
1) Thread size: 3/16;  10/24"; 12/24
2) SS Orifice size: 0.1mm; 0.2mm; 0.3mm; 0.4mm; 0.5mm and lager.
   Ceramic Orifice size: 0.08mm; 0.1mm; 0.2mm; 0.3mm; 0.4mm; 0.5mm and lager.
3) Water Drop Size:  3 micron --- 70 micron
4) With Anti-drop Device inside Nozzle
5) High working Pressure: up to 1200psi ( 80bar)

Diferences: (Especially Material)

WHF includes AFD-SS and AFD-CE
AFD-SS :  Brass body + Stainless Steel Orifice
AFD-CE :  Brass body + Ceramic Orifice

BFD :  SS body + Stainless Steel Orifice

CFD includes:
CFD-A-SS: Nickel Plated Body + Stainless Steel Orifice
CFD-A-CE: Nickel Plated Body + Ceramice Orifice
CFD-B-SS: Stainless Steel Body  + Stainless Steel Orifice
CFD-B-CE: Stainless Steel Body  + Ceramic Orifice

DFD Includes DFD-SS and DFD-CE
DFD-SS :  Stainless Steel body + Stainless Steel Orifice
DFD-CE :  Stainless Steel body + Ceramic Orifice

EFD Includes EFD-SS and EFD-CE
EFD-SS :  Nickel Plated body + Stainless Steel Orifice
EFD-CE :  Nickel Plated  body + Ceramic Orifice

FFD : Nozzle Filter; Material: Nickel Plated

Flow Rate of WH Series High Pressure Mist Nozzles is as following:
Flow Rate matters with nozzle's orifice size and working pressure.

Orifice Size	Working Pressure	Flow Rate ( ml /min)
0.08mm	70bar / 1000psi	23 ml/miin
0.10mm	70bar / 1000psi	35 ml/min
0.15mm	70bar / 1000psi	46 ml/min
0.20mm	70bar / 1000psi	89 ml/min
0.30mm	70bar / 1000psi	145 ml/min
0.40mm	70bar / 1000psi	178 ml/min
0.50mm	70bar / 1000psi	243 ml/min
0.60mm	70bar / 1000psi	320 ml/min
